2400G Programmable Centrifuge

US Filtermaxx 2400G Features:

• 120 volt entry model.
• Submicron Particulate Removal
• Feed rate 10 to 40 GPH
• Designed, made and tested in USA.
• Forced Ventilation exhausts vapors released during processing waste oils or biodiesel. Prevents contamination of clean oil by water vapor and ventilates methanol vapors.
• Clean oil and dirty oil are separated by an internal dam
• Feed plate distributes oil evenly around circumference does not channel oil into a few small spots or use a wobbly cone.
• Single phase ¾ hp industrial electric motor.
• Footprint fits on top of 55 gallon drum.
• Belt overdrive system drives the high-speed rotor while the motor runs at 1800 rpm for a quieter, cooler running, longer lasting centrifuge.
• Large 1 gallon displacement bowl that filters 360 gallons of oil per day.
• 165 cubic inches sludge capacity.
• Input ¼ inch NPT. Output 1¼ inch NPT.
• Operating load is taken by 1-inch diameter spindle with replaceable bearings, not the motor bearings as with some other centrifuges.
• Bowl is removed by the quick release spindle in less than a minute.
• Heavy duty 1 inch thick aluminum centrifuge body for rigidity and minimal vibration.

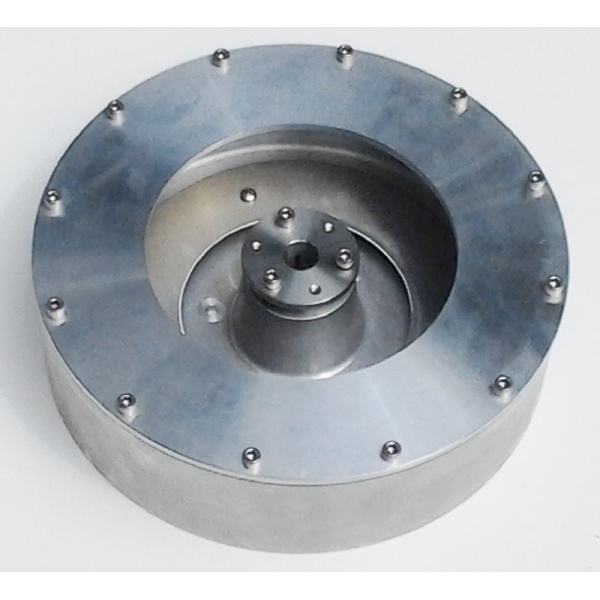

• Rotor is machined aircraft grade aluminum casting.
• Machine weight 106 pounds.
• 15 minutes from box to operation.
• Automatic controller (optional) allows unit to cycle and drain sludge for unattended cleaning of up to 960 gallons of biodiesel per day!
• Shipping Calculated. Request quote.
