$18.95 VIEW DETAILSGear Oil Pump Head — 3/4" NPT — 5–11 GPM / 210 PSI Max
- 1-Year Manufacturer Warranty
- Quick Shipping
- The Real Deal

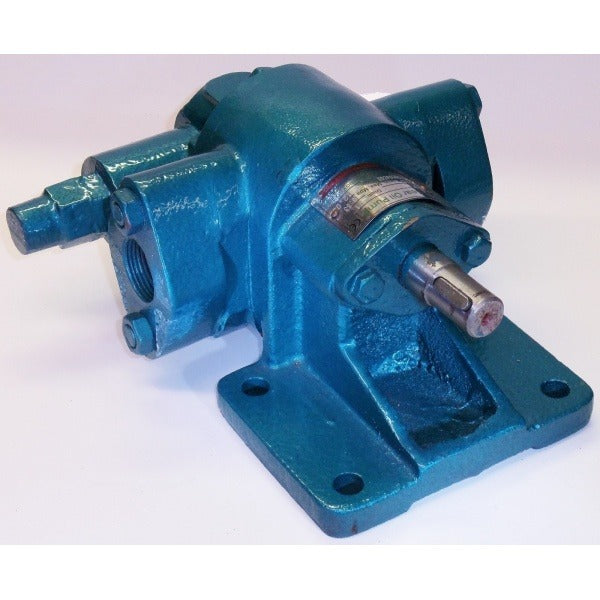

Replacement gear pump head. 5–11 GPM flow range (5 GPM @ 1,750 RPM / 11 GPM @ 3,500 RPM). Rated to 210 PSI — suitable for high-pressure injection applications. Cast iron body, C45 steel gears.
Flow rate is RPM-dependent — pair with a motor or engine at 1,750 to 3,500 RPM to achieve the desired GPM. Flow scales linearly with RPM across that range (1,750–3,500 RPM).
Specifications:
- Pump head:
- Ports: 3/4" NPT inlet and outlet
- Flow: 5 GPM @ 1,750 RPM / 11 GPM @ 3,500 RPM
- Max pressure: 210 PSI
- Max suction lift: 16 ft (5m)
- Construction: Cast iron body, C45 steel gears.
- Mounting: NEMA 56C adapter plate or engine direct coupling
Compatible with all US Filtermaxx WCB and KCB pump assemblies. See our pump lineup for matched motor and engine configurations.
Gear Oil Pump Head — 3/4" NPT — 5–11 GPM / 210 PSI Max
PRICE
$432.36
Typically Ships in 1-3 Days
Qty
WHATS YOUR PROBLEM?
Bad Fuel?
Trouble with your waste oil heater clogging?
Contaminated or Dirty oil?
Get rid of the junk with a Centrifuge! **No plugging or changing filers required**
You think your fuel is clean? Wait until you see what you get out of it with the US Filtermaxx Centrifuge line up.
Still hesitant? These are not some cheap toys, they are the real deal and unlike any others on the market. Find out for yourself or Checkout our Videos & FAQs.
Water and antifreeze contamination? Easy Day!
Avoid the headaches with a centrifuge.
Add an in-line heater for maximum performance.
